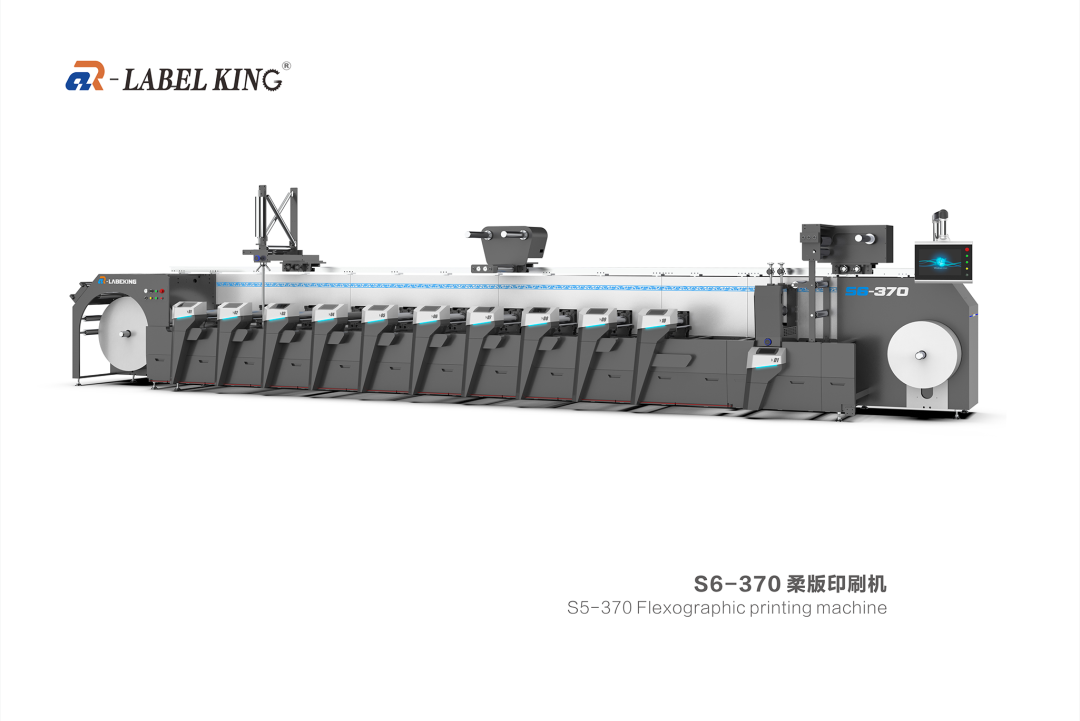

S6系列 機組式柔版印刷機S6 series In-line flexographic printing machine

· 性能 Features ·

  01電子軸直驅3伺服電機驅動，實現自動預套印和視覺全自動套印，調校簡便

  Electronic shaft direct drive:Independent dual servo motor drive,  it enables automatic pre-registration and fully automatic visual registration, easy adjustment；

  02輥枕式印刷版筒設計花瓣式結構，換版快捷，無需大幅調節，減少機械震動，避免墨杠；

  Roller bed type printing plate cylinder design: Petal-shaped structure allows for quick plate changing without significant adjustments, reducing mechanical vibrations and avoiding ink streaks.

  03大尺寸承印輥大尺寸承印輥配有水冷裝置，對無支撐薄膜材料有較好的適應性，適用于印刷多種薄膜材料，如PET、OPP、CPP、PP等；

  The large size anvil roller equipped with water chiller, which has good adaptability to unsupported film materials and is suitable for printing a variety of film materials, such as PET, OPP, CPP, PP, etc；

  04智能不停機系統可選配不停機收放卷系統，支持手動/自動接紙，提高生產效率；全視覺自動套印系統，實現自動套印和數據保存，返單時可一鍵調取，自動套準。

  Intelligent non-stop system: optional this system, support manual/automatic paper connection, improve production efficiency; full visual automatic overprinting system, realize automatic overprinting and data storage, and can be retrieved with one button when returning the order, and automatically register.

  05多功能印刷柔版印刷為主，支持冷燙、覆膜、除膠、多層標簽、折頁標簽、在線品檢、模切等工藝，可選配絲印、噴碼、凹版等聯機功能。

  Multifunctional printing: mainly flexographic printing, supporting cold stamping, lamination, Glue removal, multi-layer labels, folding labels, online inspection, die-cutting and other processes, and optional online screen printing, inkjet printing, gravure, etc.

  06便捷收放料獨立料卷升降機構，自動化控制，減輕勞動強度。

  Simple rewinding and unwinding device: independent material roll lifting mechanism, automatic control, reducing labor intensity.

· 設備參數 Parameters ·

機型Type370/450/550/650

色組可選Print color2-12 Colors

最大印刷寬度 Max print width370mm/450mm/550mm

印刷長度范圍Print repeat length203.2-635mm

最大走紙寬度 Max. Web Width380mm/460mm/560mm/660mm

機械速度 Max mechanical speed200m/min

最大放卷直徑Max.Unwind Diaø1000mm

最大收卷直徑 Max. Rewind Diaø1000mm

干燥系統 Drying systemOptional UV mercury lamp, LED UV, Hot air drying可選UV汞燈、LED UV、熱風干燥
